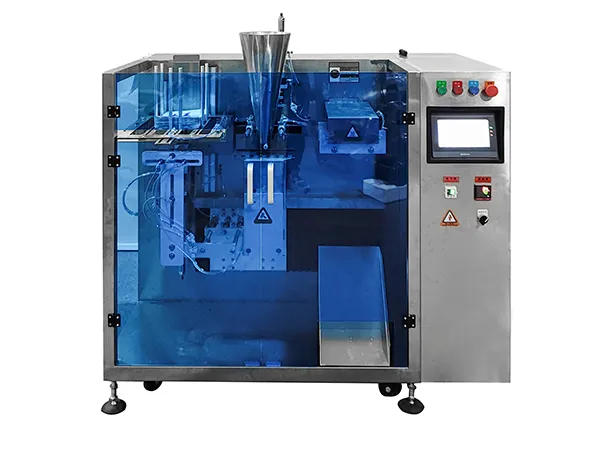

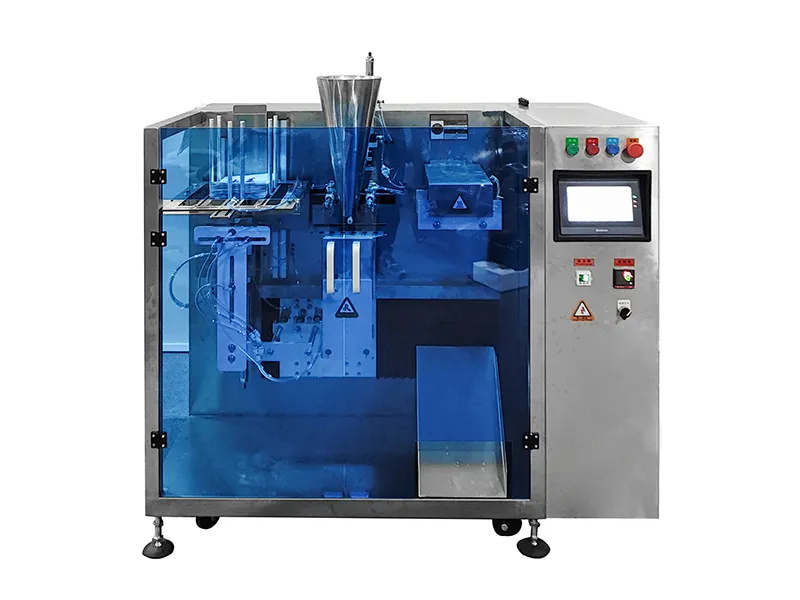

Automatic Premade Pouch Filling Sealing Machine

Horizontally Fill and Seal Bags Up to 220 mm Wide

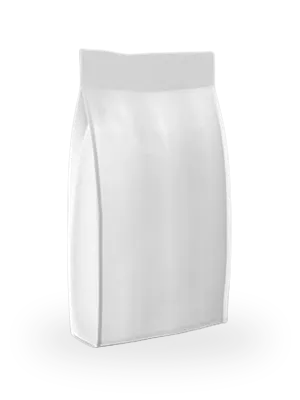

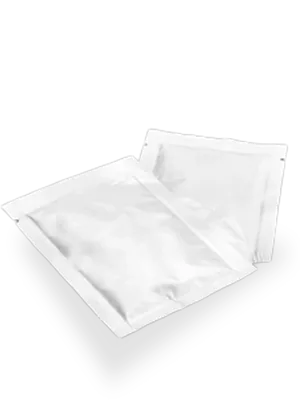

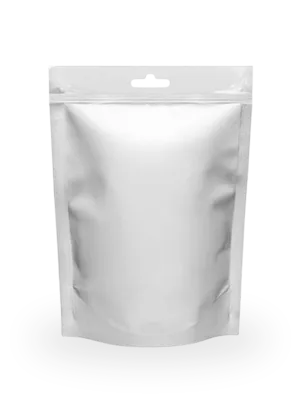

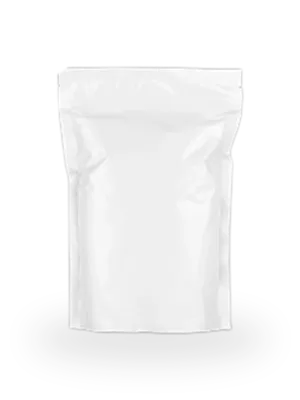

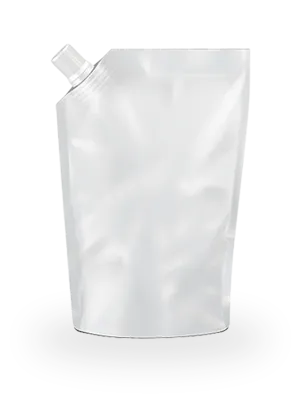

The WHH series horizontal premade pouch machine is a compact premade pouch filler and sealer, also known as a pouch filling sealing packaging machine (pick fill seal machine), designed for filling and sealing powders, granules, and liquids, compatible with flat pouches, stand-up pouches, and M-type pouches, with a production speed of 10–25 bags per minute, making it ideal for small-scale companies or startups transitioning from manual production to automated processes.

  • Bag width

    80 to 220mm

  • Filling range

    10 to 2000g

  • Packaging speed

    10 to 25 bags per minute

Request a Quote
Workflow
    • Bag Loading

      The premade pouch is automatically picked from the bag magazine, preparing it for filling.

    • Bag Opening

      The bag opening is made using a suction cup or mechanical device to ensure the pouch is fully open.

    • Filling

      The required material is accurately filled into the pouch.

    • Bag Closing

      The bag opening is closed, ensuring it is neat and even.

    • Sealing

      The bag is sealed using heat sealing or clamping to ensure it is securely closed.

Specifications
Model WH3-220H
Working stations 3 stations
Bag size W: 80-220mm L: 100-300mm
Packing speed 10-25 bags/min
Filling range 10-2000g
Dimension 1300 × 800 × 1200mm
Weight 300kg
Voltage 220V, single phase
Power 3kW
Air consumption 0.9 m³/min
Standard Configurations
PLC Siemens
Frequency Converter Siemens
Touch Screen Siemens
Relay Weidmuller
Bearing NSK
Applications

Our horizontal premade pouch packing machine is designed for a wide range of packaging applications, including:

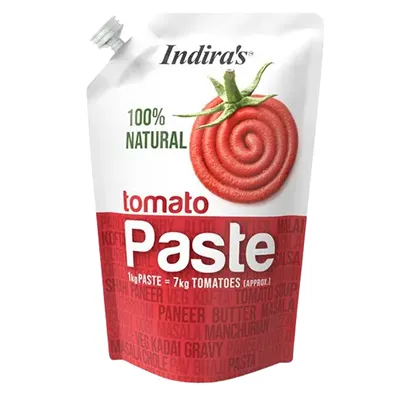

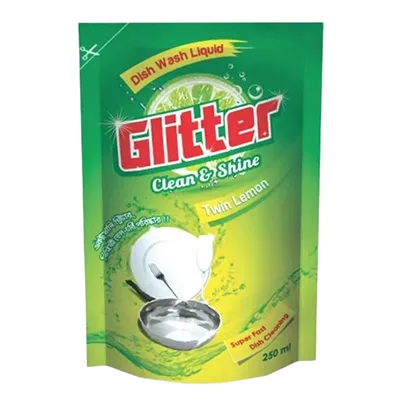

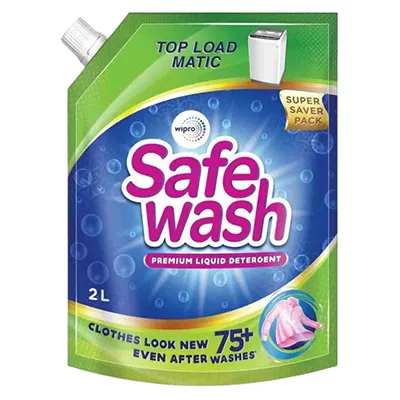

      Liquids: Beverage, juice, detergent, shampoo, paste, tomato sauce, mayonnaise, soup, oil, and more.

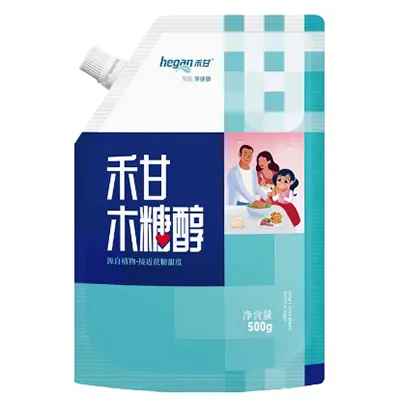

      Powders: Detergent powder, milk powder, flour, cocoa powder, coffee, fertilizer, and other powders.
      Granules: Snacks like nuts, dried fruits, cookies, chips, candy, chocolate, grains, pickles, noodles, coffee beans, pet food, frozen food, seafood, meat products, cooked food, and more.

    This premade pouch packing machine offers flexibility for various industries, ensuring efficient packaging across different material types.

  • Applications
  • Applications
  • Applications
  • Applications
  • Applications
Videos

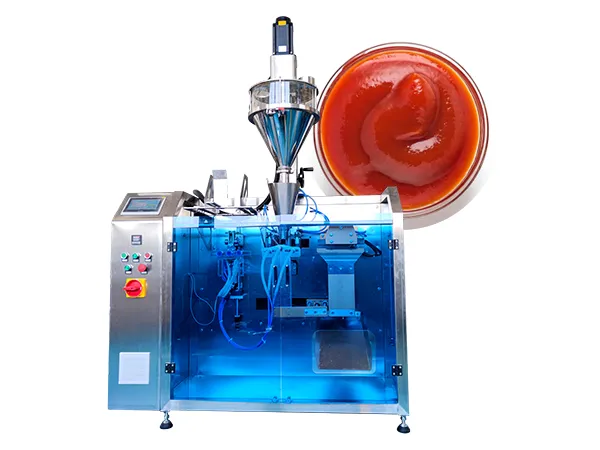

Premade pouch filler and sealer for sauce packaging
Premade pouch filler and sealer for sauce packaging

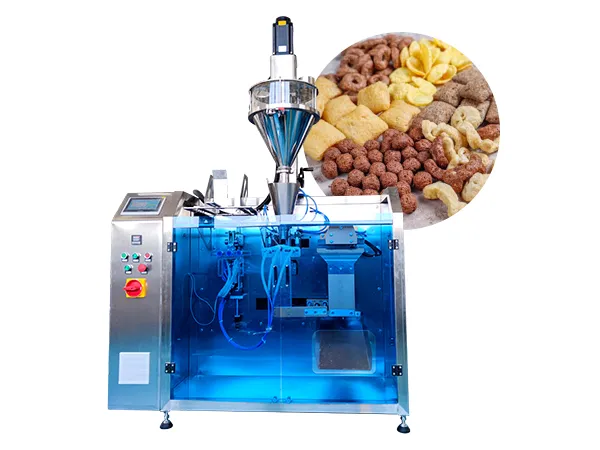

Premade Pouch Filling and Sealing Machine for Granules
Premade Pouch Filling and Sealing Machine for Granules

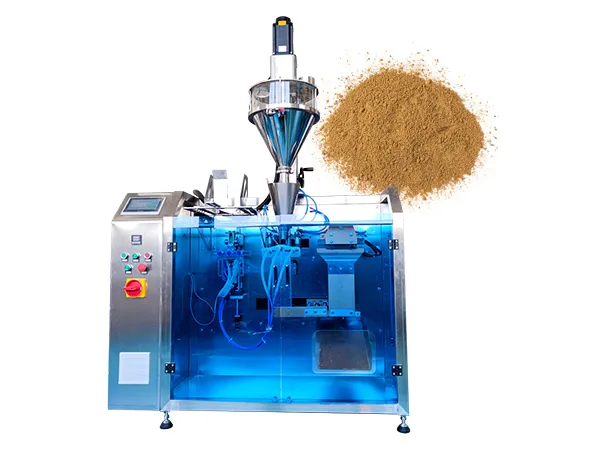

Premade Pouch Packaging Machine for Powder
Premade Pouch Packaging Machine for Powder
In addition to the premade pouch packaging machines, we also supply various types of peripheral equipment to ensure a complete and efficient packaging solution.
Related Products
Premade Pouch Filling System with Vacuum Flush
Premade Pouch Filling System with Vacuum Flush
Rotary Premade Pouch Filler and Sealer
Rotary Premade Pouch Filler and Sealer
Premade Pouch Filling Machine, 2 Pouches per Cycle
Premade Pouch Filling Machine, 2 Pouches per Cycle

  • Bag Magazine Width: Adjusted via the spiral mechanism.
  • Bag Clamp Distance: Set through the touch screen interface.

Typically, the packaging machine supports bag lengths ranging from 100mm to 300mm.

Yes, the packaging machine can be monitored by connecting it to your company’s production management software.

Yes, additional equipment can be installed for seal quality detection.

The premade pouch packing machine uses a buffering mechanism during the filling process to protect fragile products.

The premade pouch packing machine supports heat sealing and ultrasonic sealing.
Sealing patterns include mesh, straight, and line seals (for PE bags).
