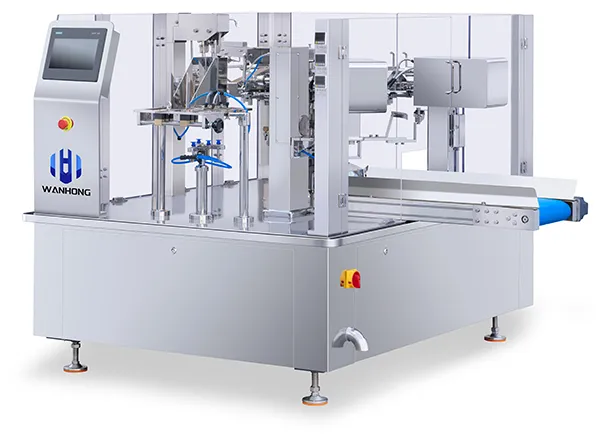

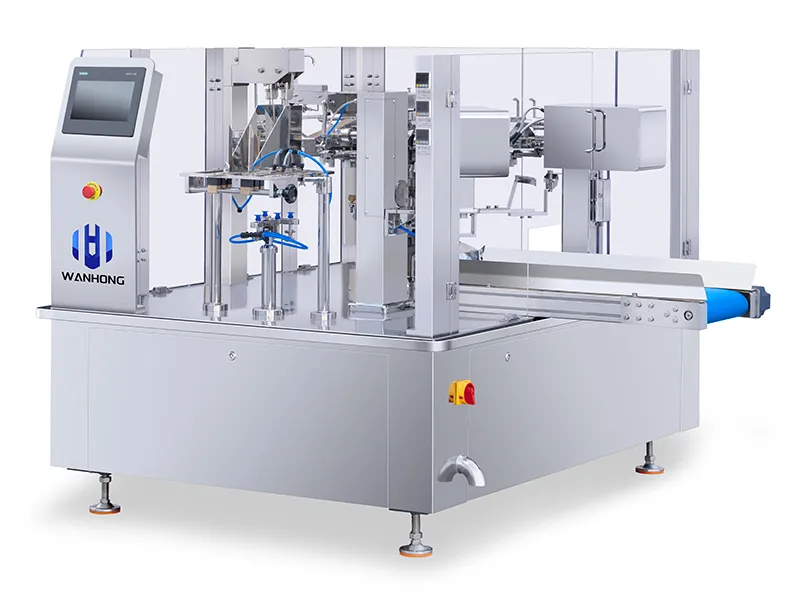

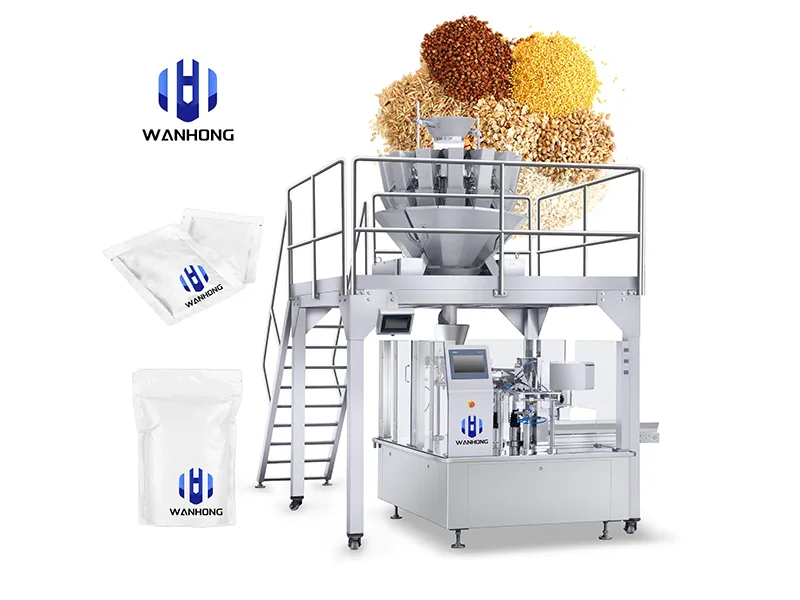

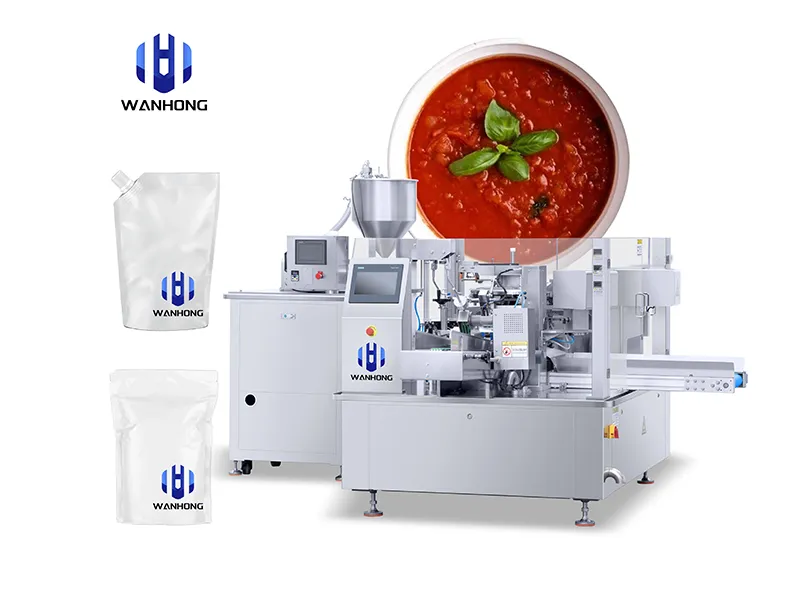

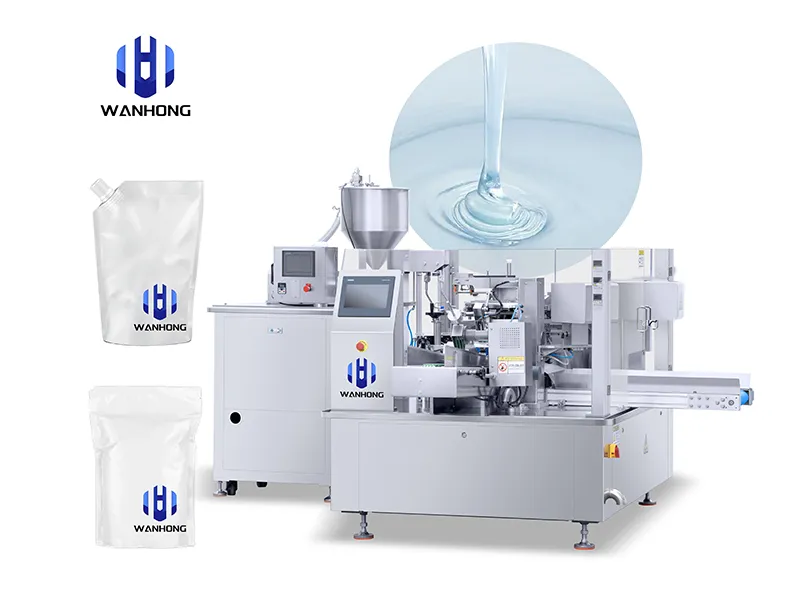

Automatic Rotary Premade Pouch Filler and Sealer

Automatic Premade Pouch Filling Sealing Machine

Fill and Seal Premade Pouches At Speeds Up to 60 BPM

The WHR series fully automatic rotary premade pouch filler and sealer adopts Pick-Fill-Seal (PFS) design to deliver reliable and efficient packaging solutions for powders, granules, and liquids. This premade pouch machine is ideal for industries such as food, pharmaceuticals, and daily chemicals. The rotary premade pouch packing system is compatible with a wide range of pouch types, including flat pouches, spout pouches, zipper pouches, stand-up pouches, stand-up zipper pouches, shaped bags, and eight-side seal bags.

  • Bag width

    50 to 300mm

  • Filling range

    10 to 5000g

  • Packaging speed

    up to 60 bags per minute

Request a Quote
Workflow

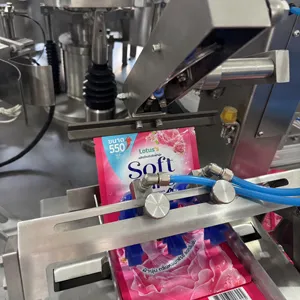

  • Bag loading
    Bag loading

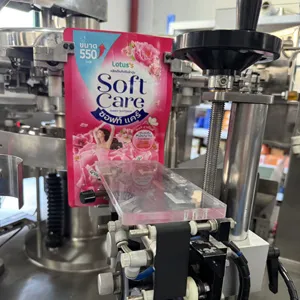

  • Date coding
    Date coding
  • Bag opening
    Bag opening

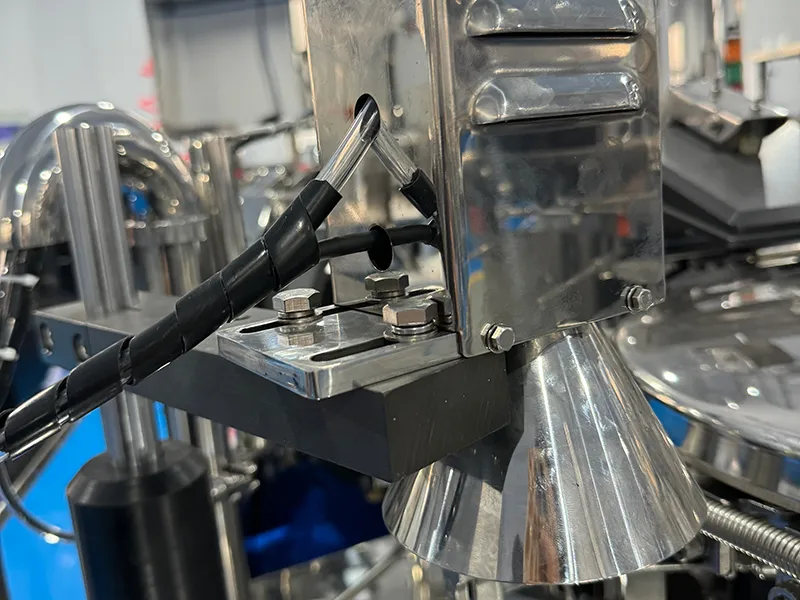

  • First filling
    First filling
  • Second filling
    Second filling
  • First heat sealing
    First heat sealing
  • Second heat sealing
    Second heat sealing
  • Output
    Output
Bag loadingBag loading
Date codingDate coding
Bag openingBag opening

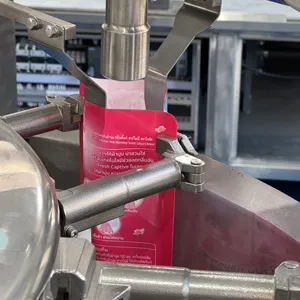

FillingFilling
Heat sealingHeat sealing
OutputOutput
Features
  • Bag Width Range Can handle pouch widths from 50mm to 300mm, providing flexibility for different packaging needs.
  • Filling Range Capable of filling material ranging from 10g to 5000g.
  • Packaging Speed High-speed performance of over 40 pouches per minute, ensuring efficient production.
  • User-Friendly Interface A 10-inch touch screen offers easy access to settings, making operation seamless.
  • Compact and Space-Efficient Design The electrical cabinet is positioned at the bottom, saving space and offering mobility.
  • Easy Maintenance The entire unit is washdown-ready with an integrated water tank for cleaning convenience.
  • Durable Construction Built with stainless steel (304) for long-lasting durability and food safety.
  • Mechanical Drive Uses a robust mechanical transmission, offering stability and a long service life of 20+ years.
  • Automatic Oil Supply System The machine is maintenance-free, and adjustments are easy, making it convenient for quick setup and operation.
  • Adjustable Pouch Width Simple and integrated adjustments to accommodate different pouch sizes.
  • Fast packing speed Achieves a packing speed of over 40 bags per minute, ensuring high efficiency and fast production times.
Specifications
Model WH8-230R WH8-300R
Working stations Eight stations Eight stations
Bag size W: 80-230mm
L: 100-400mm 		W: 180-300mm
L: 150-450mm
Bag type Flat bag, stand-up bag, spout pouch, doypack, etc. Flat bag, stand-up bag, spout pouch, doypack, etc.
Packing speed ≤60 bags/min 20-50 bags/min
Filling range 10-2500g 100-5000g
Dimension 2500×1460×2000mm 2140×1830×1800mm
Weight 1500kg 2000kg
Voltage According to customer requirement According to customer requirement
Power 4.5kW 4.5kW
Air consumption 0.6 m³/min 0.6 m³/min
Standard Configurations
PLC Siemens
Frequency Converter Siemens
Touch Screen Siemens
Solenoid Valve FESTO
Bearing IKO/IGUS
Applications

This premade pouch packing machine is versatile and suitable for packaging a wide variety of materials:

      Liquid Packaging: Ideal for liquids such as beverages, juices, detergents, shampoos, sauces, oils, and more.
      Granule Packaging: Handles granules like nuts, dried fruits, snacks, coffee beans, and pet food.
      Powder Packaging: Perfect for powders, including washing powder, milk powder, flour, cocoa powder, coffee powder, and spices.
      Cooked Food Packaging: Also suitable for packaging cooked food, ready-made meals, and other food items, ensuring tight seals and durability for long-lasting preservation.
    • Oil packaging Oil packaging
    • Spice packaging Spice packaging
    • Cassava flour packaging Cassava flour packaging
    • Cocoa packaging Cocoa packaging
    • Oats packaging Oats packaging
    • Snack packaging Snack packaging
    • Dried mushroom packaging Dried mushroom packaging
    • Dried mango packaging Dried mango packaging
    • Lollipop packaging Lollipop packaging
    • Spice packaging Spice packaging
Details

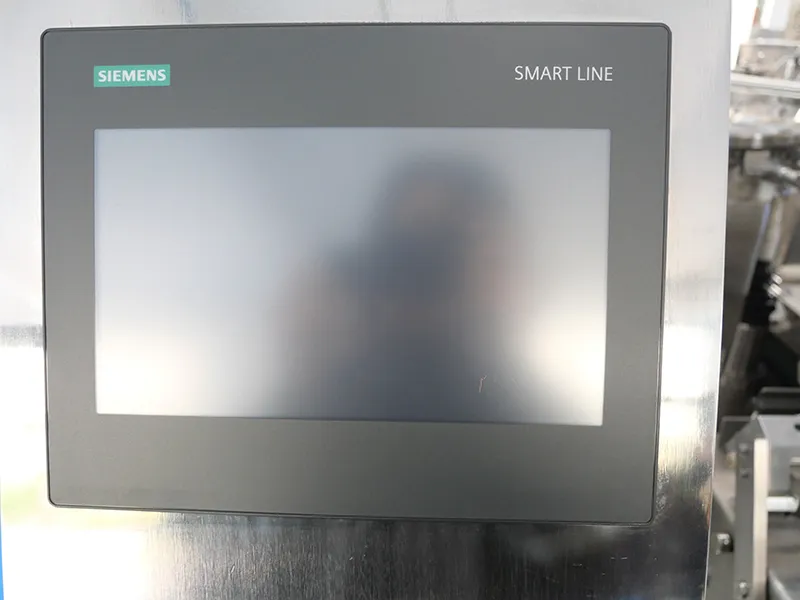

Touch Screen

Set the parameters, start, or turn off functions using the touch screen of the WHR series fully automatic rotary premade pouch filling and sealing machine, offering you complete control over the packaging process.

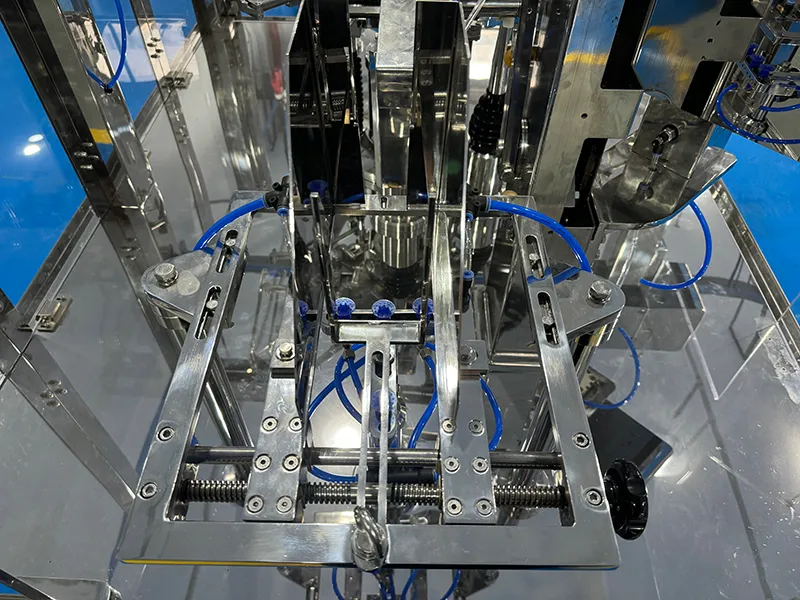

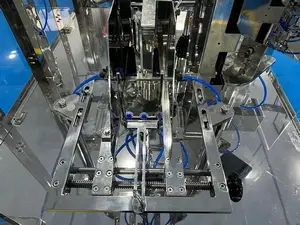

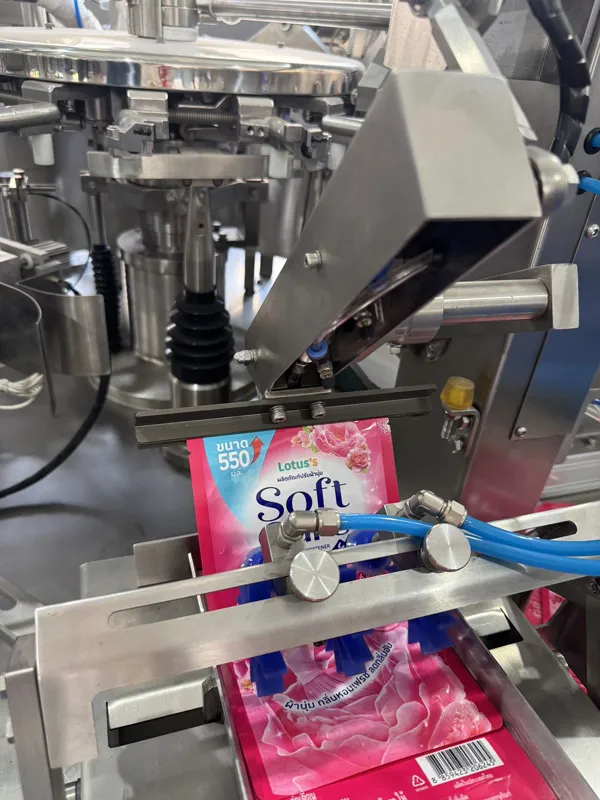

Bag Loading (Bag Magazine)

Suitable for flat bags and can store a large stack of bags at once, significantly reducing labor costs.

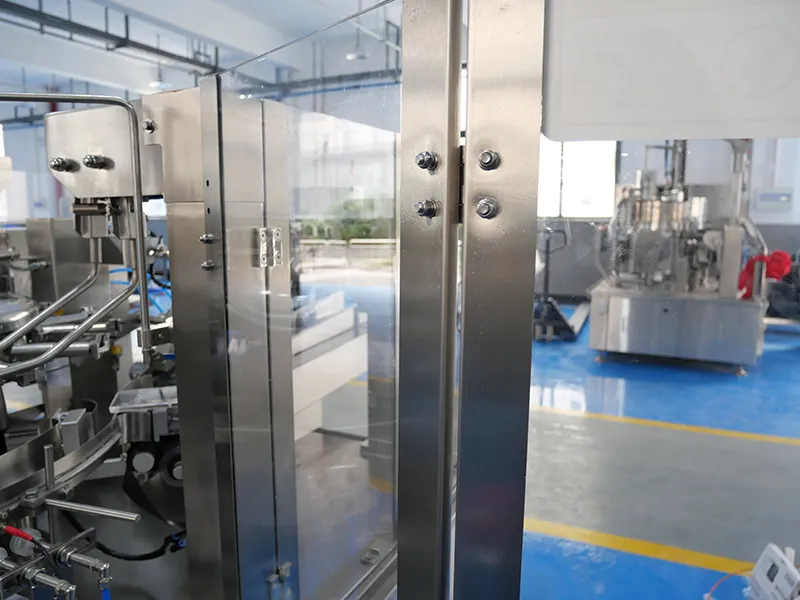

Guard Door

Features a foldable flexible door, offering convenience and easy access for operation.

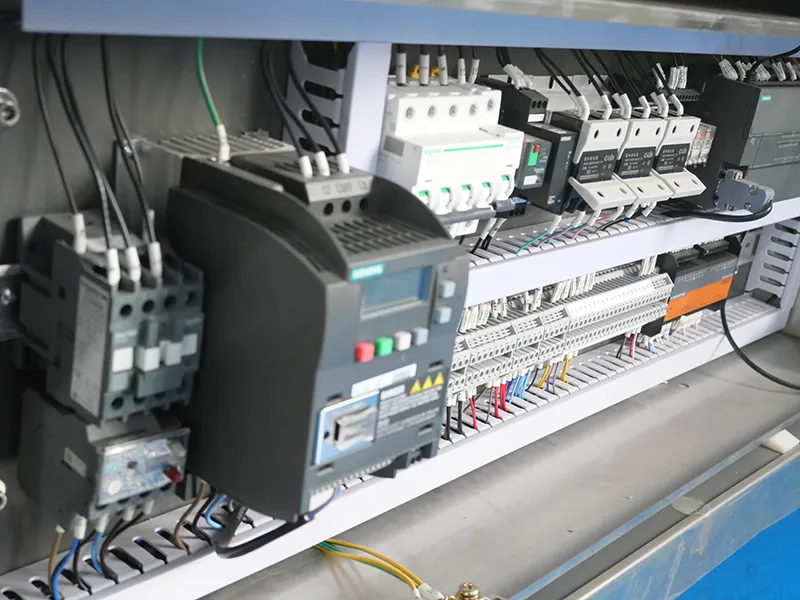

Electric Cabinet

Equipped with a sliding electric cabinet, ensuring easy access and space-saving design for efficient operation.

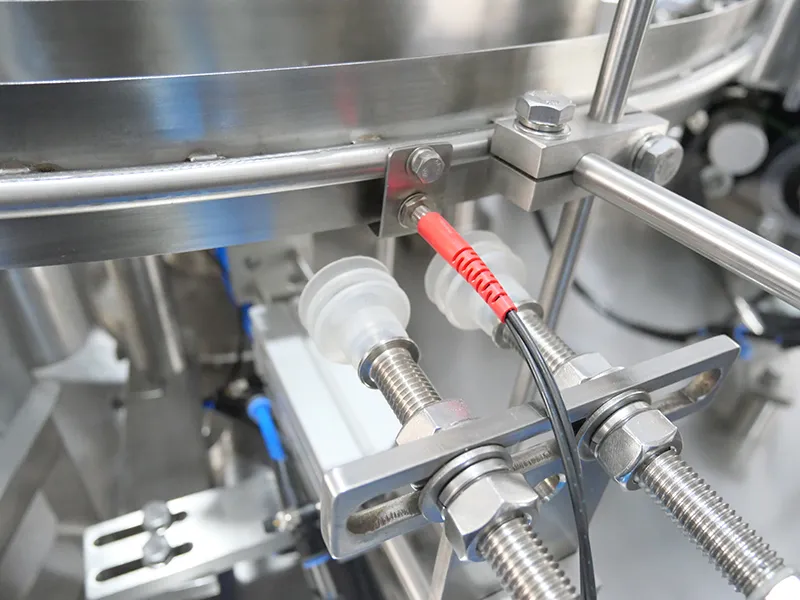

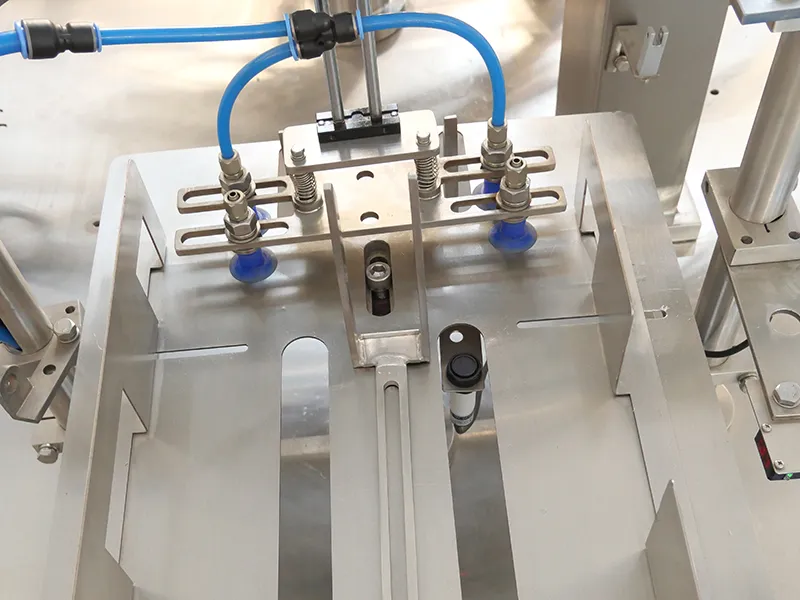

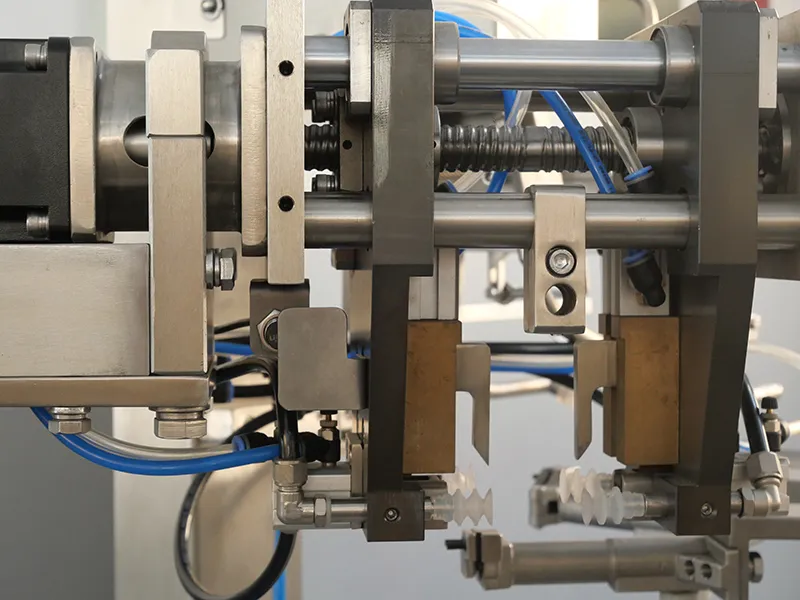

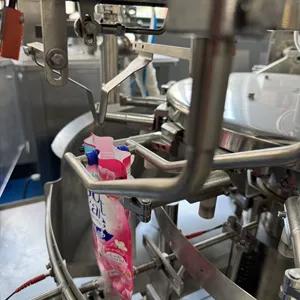

Bag Opening

Opens the bag using a suction cup, ensuring smooth and precise bag handling during the packaging process.

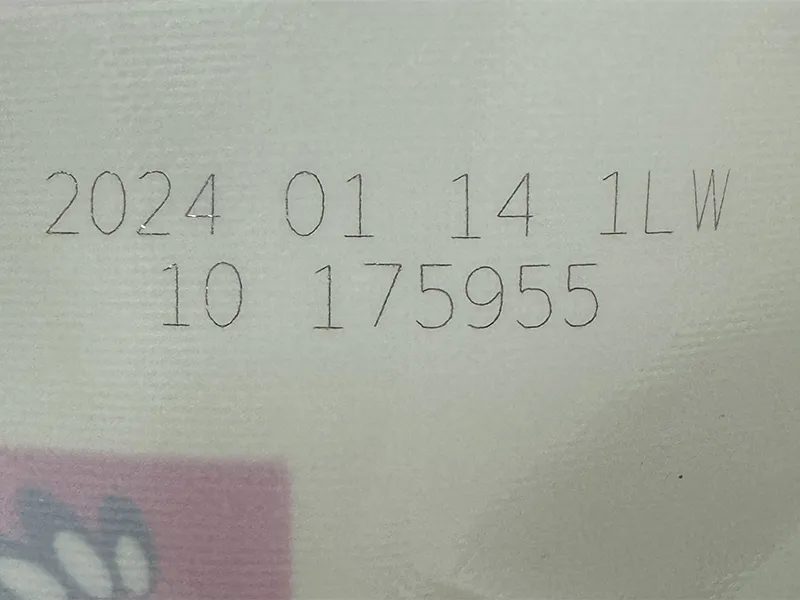

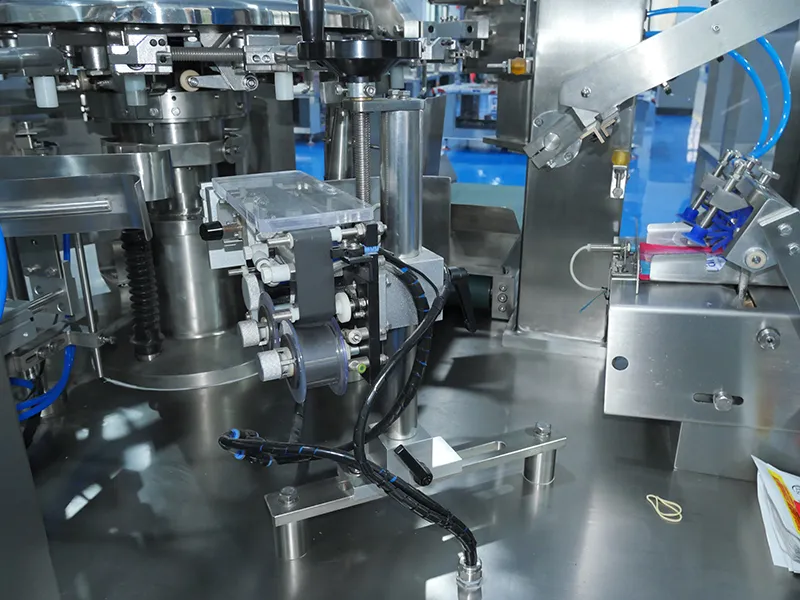

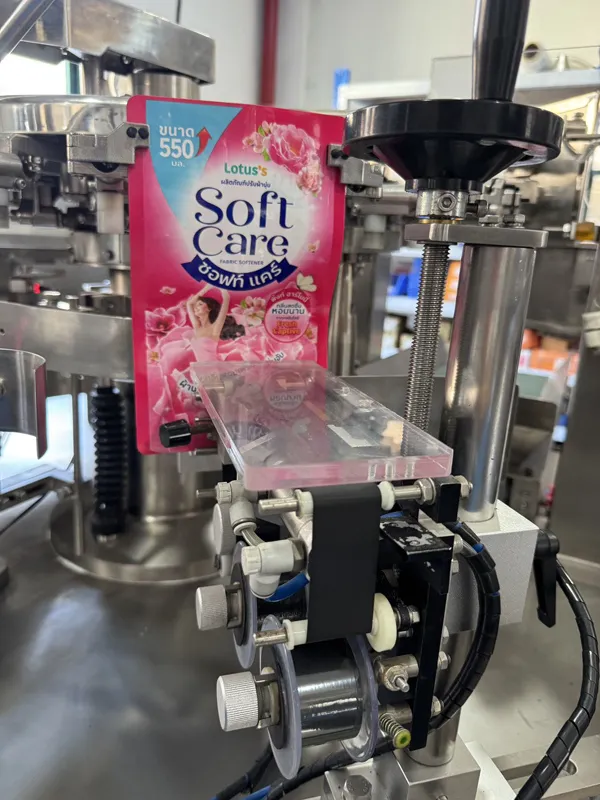

Date Coding
Date Coding

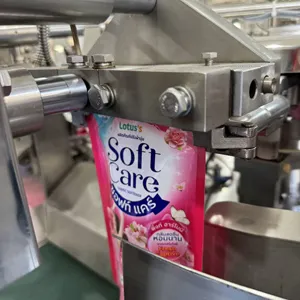

Heat Sealing

Uses a heating sealing system with two sealing steps, and the sealing pattern can be customized to meet your packaging needs.

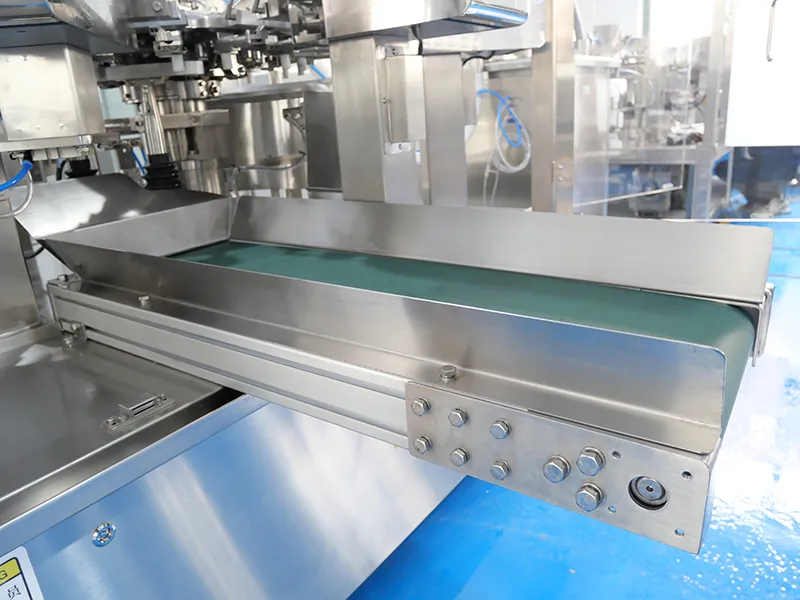

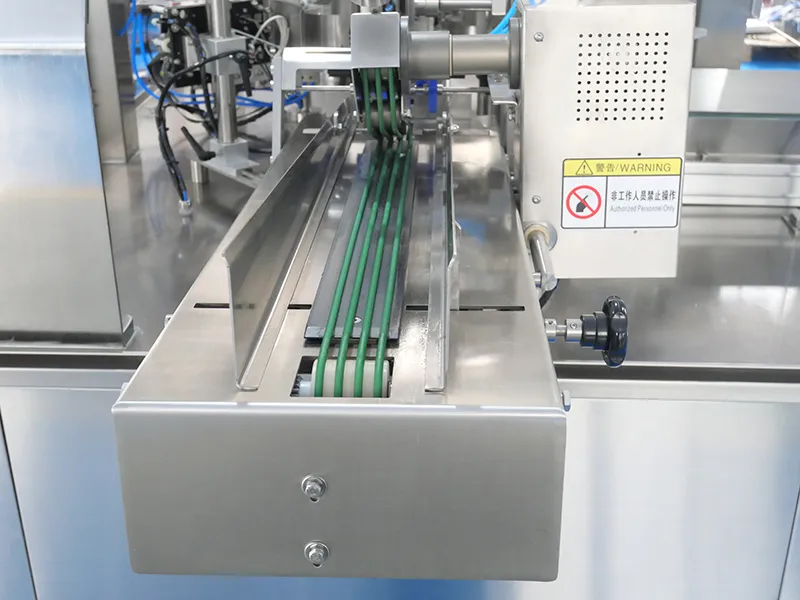

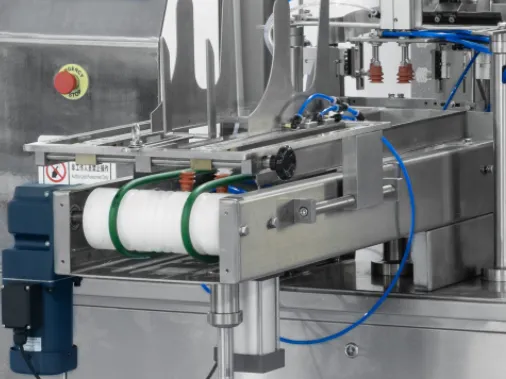

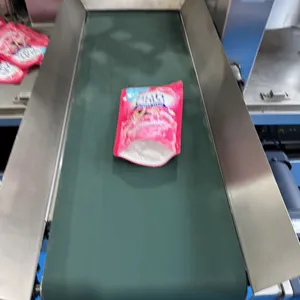

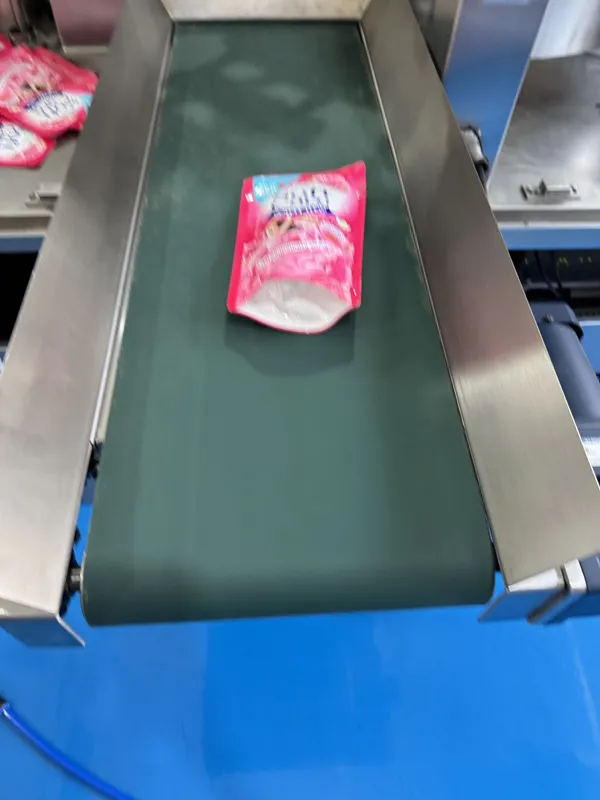

Output Conveyor

Outputs the packaged products, ready for the next stage in your production process.

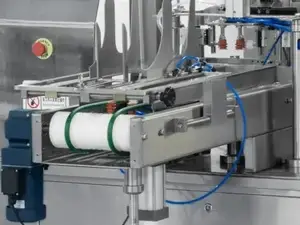

Spout Bag Loading

Suitable for spout pouch loading, providing flexibility for different pouch types in your packaging operations.

Top Bag Loading (for Soft Bag)

Suitable for loading large and soft bags, offering versatility in handling different pouch types.

Horizontal Bag Loading (Doypack/Stand-Up Zipper Bag)

Suitable for loading uneven bags, such as stand-up zipper pouches, ensuring reliable performance with various pouch shapes.

Bag Bottom Opening (for Stand-Up Pouch)

Designed for stand-up pouches, equipped with a sensor to ensure the bottom of the bag is properly opened. If the bag's bottom isn't fully opened, the machine will not proceed with filling.

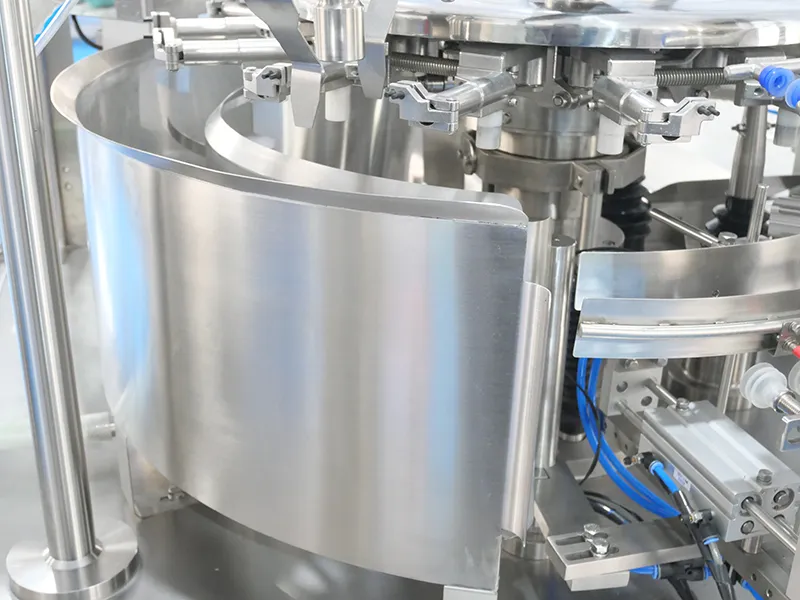

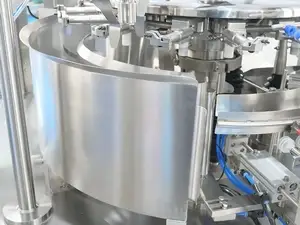

Material Collector

Suitable for liquid materials, ensuring the packaging machine stays dry and clean at all times for optimal performance.

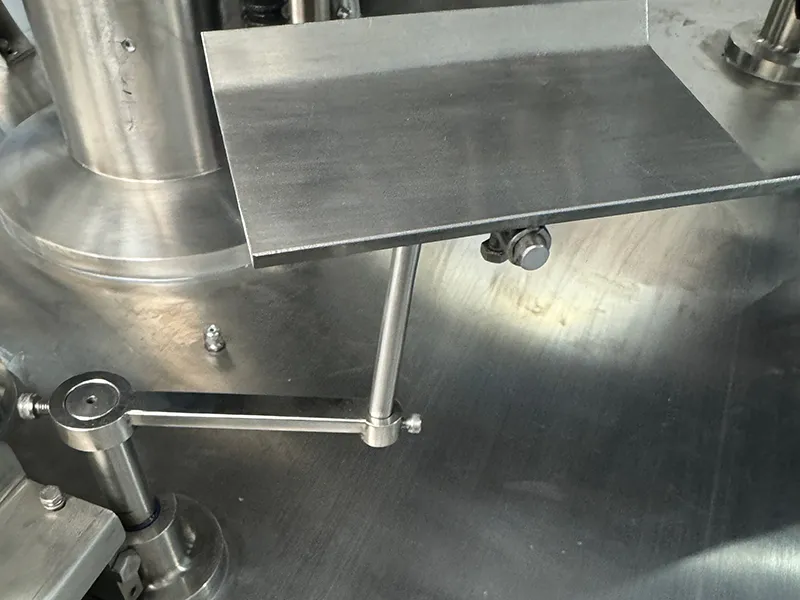

Bag Bottom Vibration

Suitable for granules, designed to prevent particles from blocking the bag opening, ensuring smooth and efficient filling.

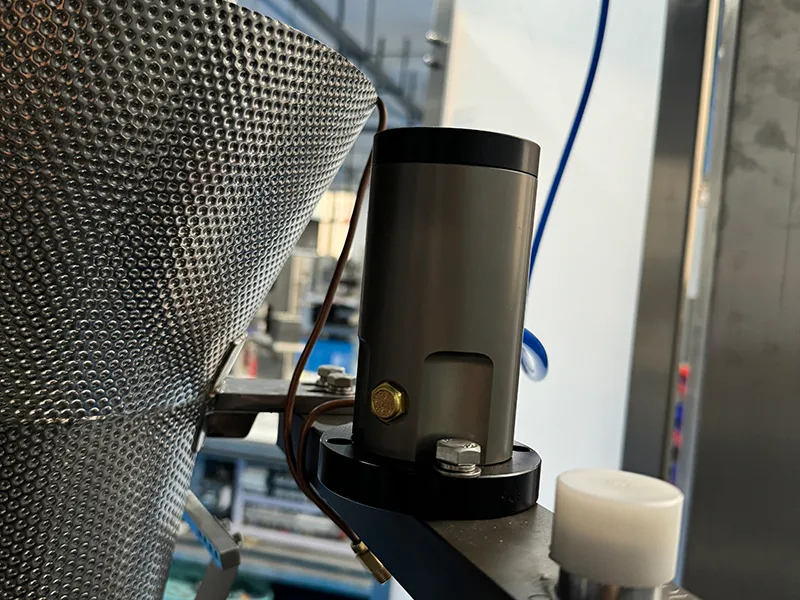

Hopper Vibration

Suitable for granules, designed to prevent particles from blocking the hopper, ensuring smooth and continuous material flow during packaging.

Air Blowing

Suitable for liquids, designed to prevent liquid residue from remaining at the bag opening, ensuring a secure and clean seal every time.

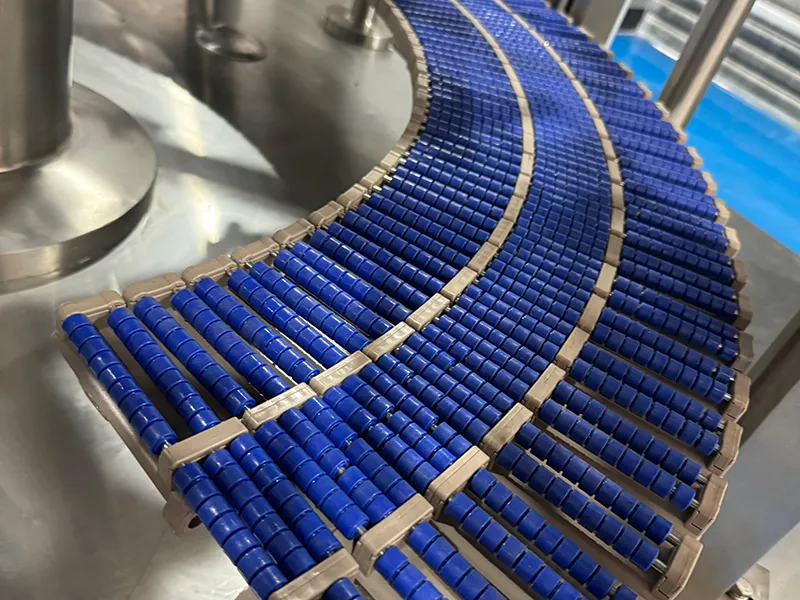

Roller Conveyor

Suitable for packaging heavy items, ensuring that bags remain securely in place during the packaging process, preventing them from slipping.

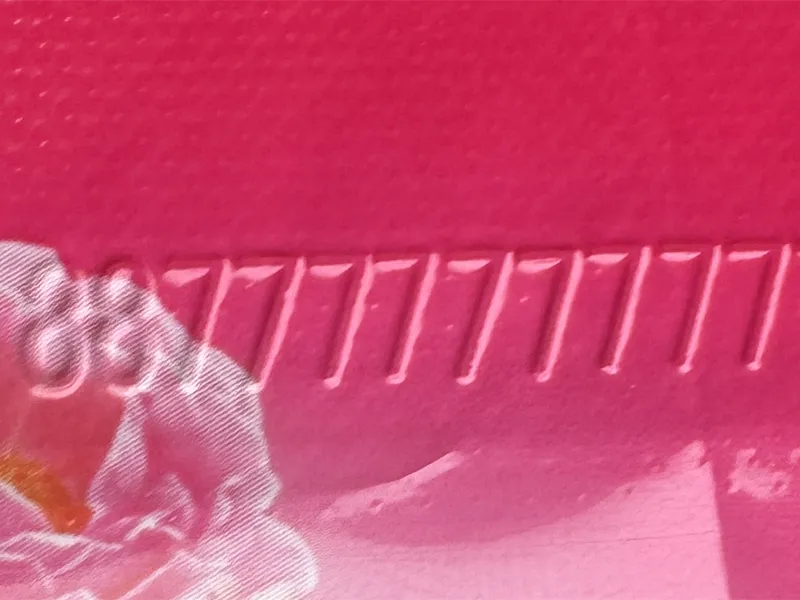

Embossed Printing
Embossed Printing
Inkjet Printing
Inkjet Printing
Laser Printing
Laser Printing
Zipper Bag Opening

Suitable for zipper bags, designed to open the zipper for easy filling and sealing.

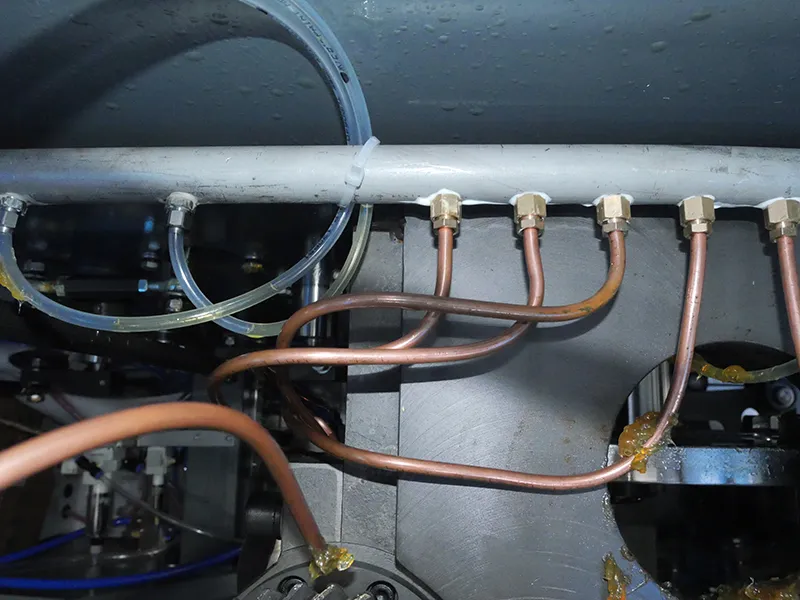

Automatic Lubrication System
Automatic Lubrication System
Videos
Liquid Pouch Filling Machine
Liquid Pouch Filling Machine
Premade Pouch Filling and Sealing Machine for Granules
Premade Pouch Filling and Sealing Machine for Granules
In addition to the premade pouch packaging machines, we also supply various types of peripheral equipment to ensure a complete and efficient packaging solution.
Related Products
Premade Pouch Filling Machine, 2 Pouches per Cycle
Premade Pouch Filling Machine, 2 Pouches per Cycle
Automatic Premade Bag Filling Sealing Machine, Horizontal Type
Automatic Premade Bag Filling Sealing Machine, Horizontal Type
Premade Pouch Filling System with Vacuum Flush
Premade Pouch Filling System with Vacuum Flush

Yes, we use a customized bag-loading system designed to handle different pouch types. The machine can be equipped with optional features such as bottom opening for stand-up pouches and zipper opening mechanisms for zipper bags, allowing a single machine to pack multiple pouch formats efficiently.

Yes, one machine can use different filling systems, such as a combination weigher for granules and an auger filler for powders.

By adjusting parameters such as sealing temperature, sealing time, and cylinder pressure, the machine can be adapted to work with different bag materials.

The machine maintains a weight accuracy of approximately ±1%. Actual performance may vary with material characteristics such as particle size, viscosity, and adhesion. For higher precision, an optional post-packaging checkweigher system can be integrated.

Yes, it’s very convenient. The main adjustments include bag loading width, bag clamping width, and the bottom opening position (for stand-up pouches).

  • Bag Magazine Width: Adjusted via the spiral mechanism.
  • Bag Clamp Distance: Set through the touch screen interface on the WHR series fully automatic rotary premade pouch filling and sealing machine.

Yes, customized solutions are available based on different materials and pouch types. Several optional features are available:

  • For granule materials, choose the bag bottom vibration feature.
  • For powder materials, use the bag opening dust removal function.
  • For liquid materials, select the rotary air blow function to clean the bag opening.
  • For spout pouches, use the specific loading method for spout bags.
  • For zipper bags, enable the zipper bag opening function.

The WHR series fully automatic rotary premade pouch filling and sealing machine is suitable for packaging a variety of products, including:

  • Liquids: Beverages, juices, detergents, and more.
  • Powders: Laundry powder, milk powder, flour, and other dry goods.
  • Granules: Coffee beans, snacks, nuts, and more.
  • It can handle multiple types of premade pouches, including flat, spout, zipper, stand-up, and more.
